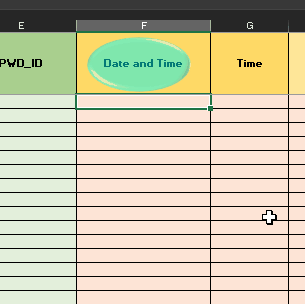

Motivation

It is tiring to input the date and time manually over and over again. For those who work in healthcare who have to fill up huge forms or tables, it will give you less headache if you could at least type in the date and time. Without the hassle of pressing the shift button just to type in the colons, then you have to edit some of it in the formula bar, check up the time then—what day is it? So yeah… this is how you’ll take some burden off your shoulders.

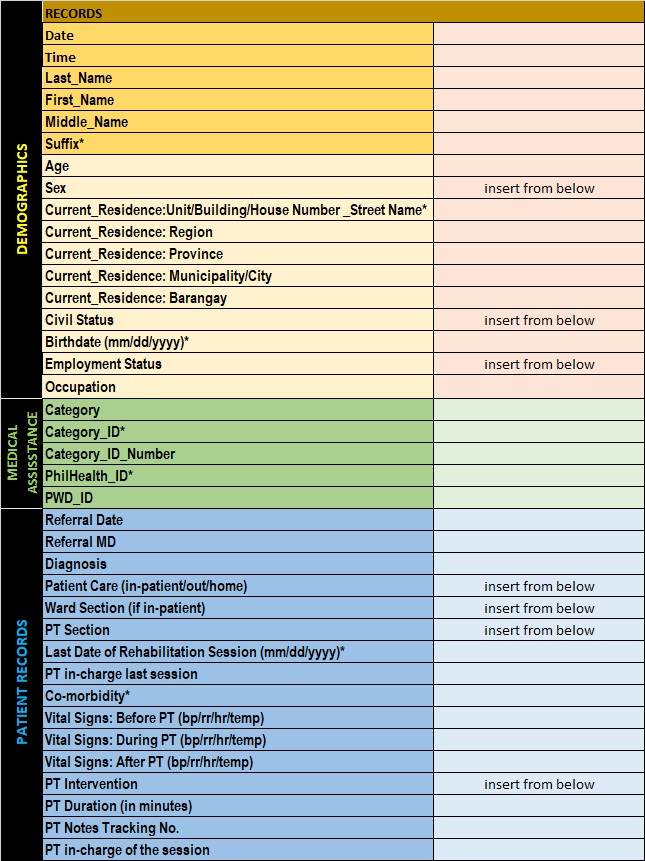

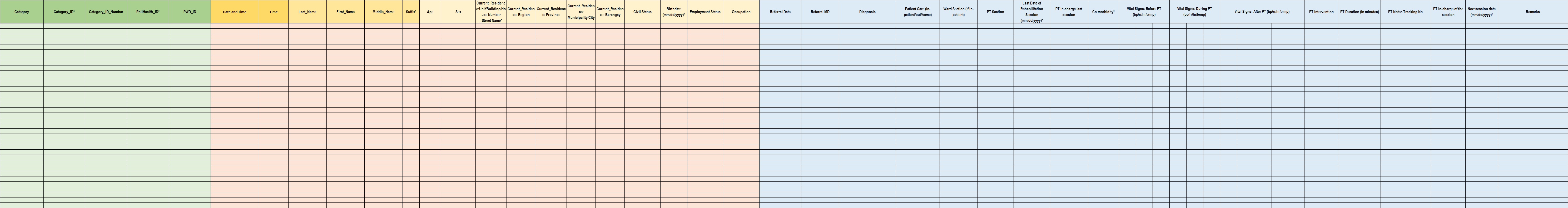

Patient Form Example

Someone I know who’s currently studying in medicine sent an example of their forms that have to be filled up. Imagine that they have been filling this up manually. She said they were only taught up to the basic use of excel(she made this form). Considering that they will be using Excel for most part of their job, it is indeed unfortunate that they could only know the basic use of it.

Tutorial

With this tutorial—however not much, since only two cells will be filled automatically—it will teach you how to automate and become at least familiar with basic programming. May you find the joy and open doors for you in programming, because the world is evolving towards computer technology.

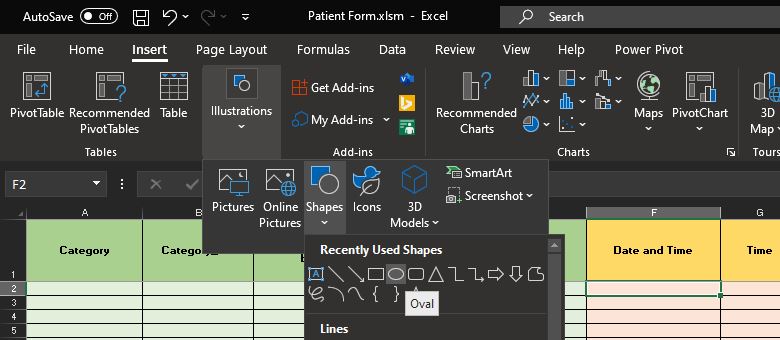

Create a shape oject

You can create a shape object¹ by going to the Insert tab. Under the Illustrations, select Shapes then pick your favorite shape. I chose Oval for this example. You may edit or format the shape. I will not affect the program you’re about to make.

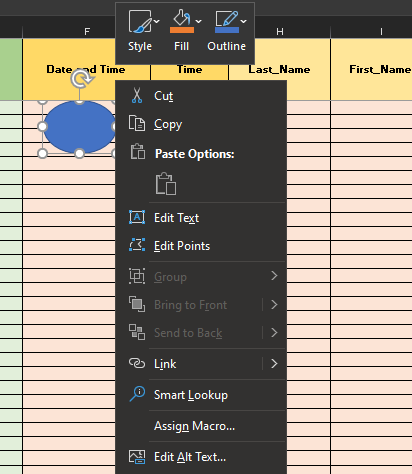

Right-click the shape object and Assign Macro

After you have made your shape object—you might as well have edited or formatted it for a while and that’s okay—right-click it and select Assign Macro.

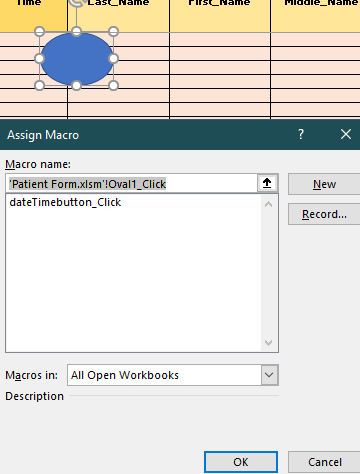

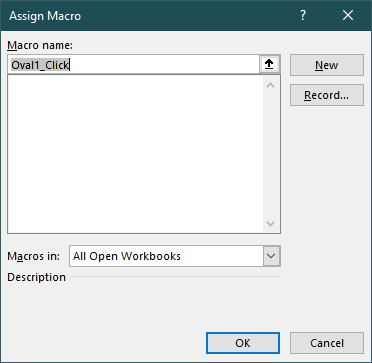

Click New

Excel will give your shape a default name of Oval1_Click. That means, you will have to refer the shape you created in your program as Oval1_Click. Select New. It will open up a new window where you will put your code.

You can always open or go back to this window for editing macros if you press Alt+F8.

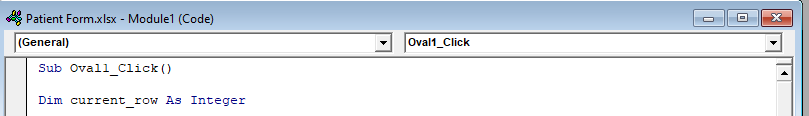

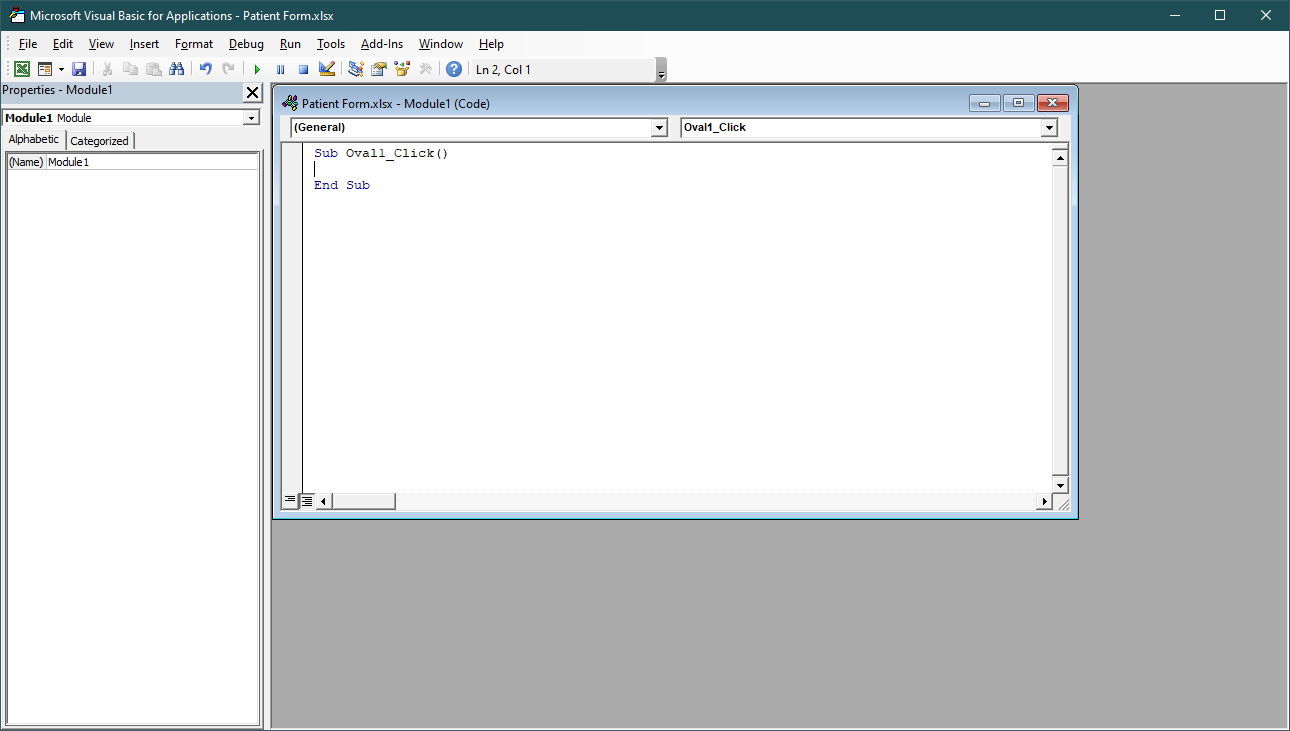

Macro Editor

As you can see below, it says, “Sub Oval1_Click().” I know you are asking these questions as you read:

• “What does it mean?”
• “Is Oval1_Click() different from Oval1_Click?”
• “What is Sub and End Sub?”

I will explain all of that later. If you’re already familiar with programming, you may skip this part and check it out here. It will take you to the bottom part of the page.

Rename the Object

This is optional, but to make life easier, let us rename our object akin to its function. This will make the code readable and your overall work much more easy to understand; not only by you, but also by others.

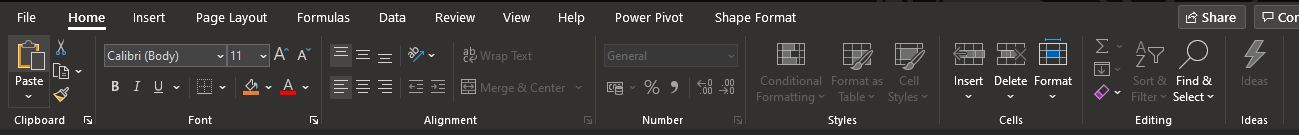

Go to the Selection Pane

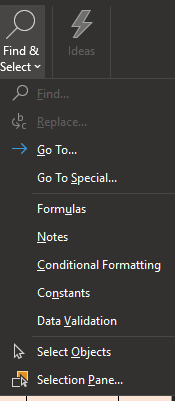

Go to Home tab. On the far right side, there should be a Find & Select menu. If you click on it, it will show you the the following figure below. If you can’t find it in your Home tab, then maybe your Excel setting is different, but that’s another topic. You can always use the search bar on the top center of your excel window and from there, it the Selection Pane would just pop up on the right.

Selection Pane

Click on the Selection Pane and it will open a side bar on the right side.

Rename the shape

Give the object an appropriate name to easily identify its action. If you’re new to programming, you probably don’t know that in most practices, we don’t start a function name or variable name (in this case, we are not using a variable) with a number or symbol. Yes, the name of our shape is also our function name. Why? Because in Excel, this will correspond to our code on the following.

Change the name of the object back in the macro editor

Here I chose the name “dateTimebutton” because our function have something to do with the date and, well, of course, time.

As you can see why it’s a function—it’s because they correspond to each other. So I change the Oval1_Click() below.

before: Oval1_Click()

after: dateTimebutton

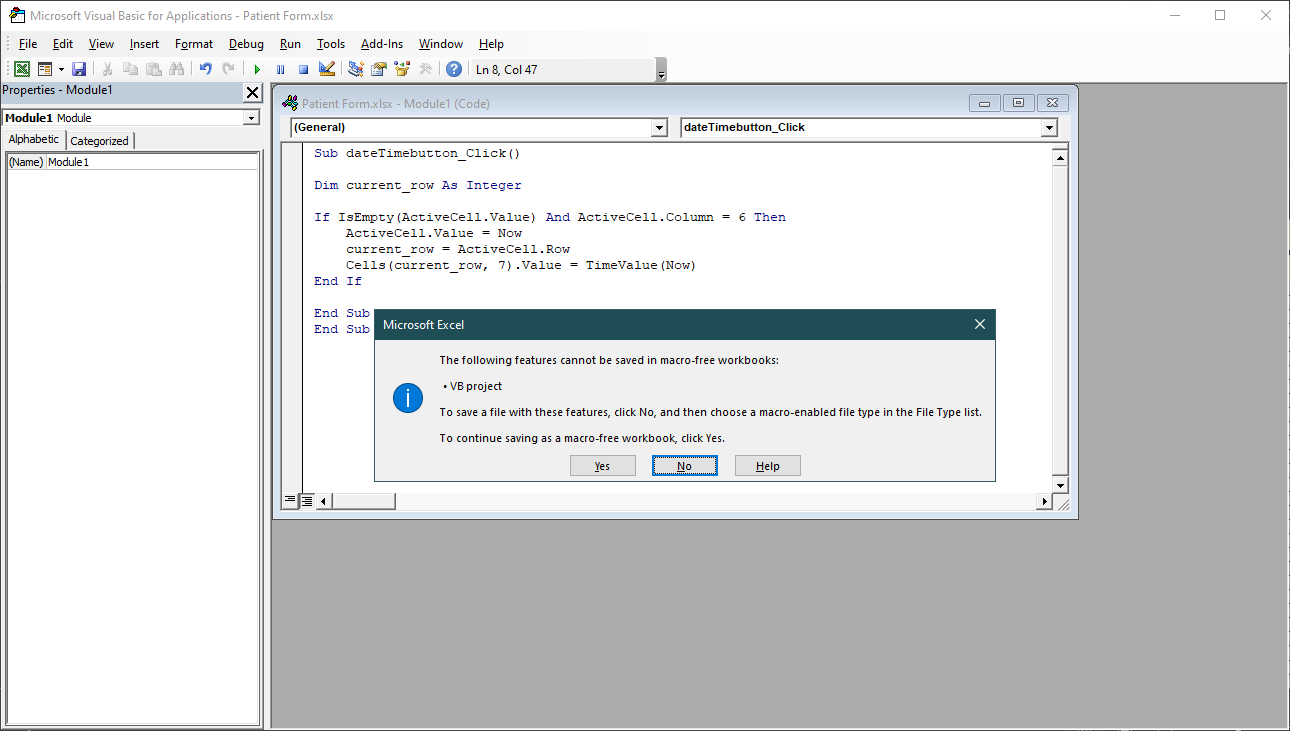

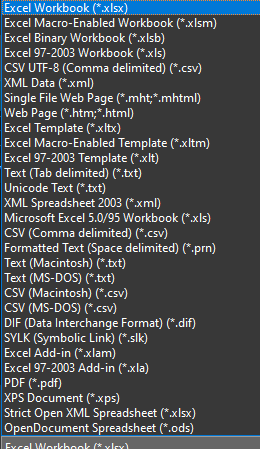

Save as .xlsm

Go back to the button and assign the name you chose as the macro

The Code Discussion

Private Sub Form_Load()
    ' Execute a simple message box that says "Hello, World!"
    MsgBox "Hello, World!"
End Sub


Sub Oval1_Click()
Dim current_row As Integer

If IsEmpty(ActiveCell.Value) And ActiveCell.Column = 6 Then

Else
    current_row = ActiveCell.Row + 1
End If
    ActiveCell.Value = Now
    Cells(current_row, 7).Value = TimeValue(Now)
End Sub



Sub dateTimebutton_Click()

Set myDocument = Worksheets(1)
myDocument.Shapes("dateTimebutton").Fill.ForeColor.RGB = RGB(255, 0, 0)

Application.OnTime Now + TimeValue("00:00:01"), "proc"

Dim current_row As Integer

If IsEmpty(ActiveCell.Value) And ActiveCell.Column = 6 Then
    current_row = ActiveCell.Row
Else
    current_row = ActiveCell.Row
End If
    ActiveCell.Value = Now
    Cells(current_row, 7).Value = TimeValue(Now)

End Sub

Private Sub LastUsedRow()

    Dim last_row As Integer

    last_row = Cells(Rows.Count, 1).End(xlUp).Row


    Debug.Print last_row
End Sub

Private Sub proc()
Set myDocument = Worksheets(1)
myDocument.Shapes("dateTimebutton").Fill.ForeColor.RGB = RGB(0, 255, 255)
End Sub

Google app scripts

function setValue(cellName, value) {
  SpreadsheetApp.getActiveSpreadsheet().getRange(cellName).setValue(value);
}

function getValue(cellName) {
  return SpreadsheetApp.getActiveSpreadsheet().getRange(cellName).getValue();
}

function getNextRow() {
  return SpreadsheetApp.getActiveSpreadsheet().getLastRow() + 1;
}

function setUser1() {
  setValue('E3', new Date());
}

function addRecord(a, b, c) {
  var row = getNextRow();
  setValue('A' + row, a);
  setValue('B' + row, b);
  setValue('C' + row, c);
}

function punchIn() {
  addRecord(getValue('E3'), new Date(), 'In - Work from Home');
}


function punchOut() {
  addRecord(getValue('E3'), new Date(), 'Out - Work from Home');
}

function punchInOS() {
  addRecord(getValue('E3'), new Date(), 'In - Office');
}

function punchOutOS() {
  addRecord(getValue('E3'), new Date(), 'OUT - Office');
}

²

³

⁴

⁵

⁶
